The silicone rubber fiberglass sleeve (inner fiber, outer rubber) is made by braiding non-alkali fiberglass into a tube, then impregnating the outer wall with high-temperature vulcanized silicone rubber and curing it at high temperatures. Compared to silicone resin tubes, it has better elasticity, is softer, has higher temperature resistance, and stronger waterproof and moisture-proof properties. It is a Class H insulation material. It is widely used in scenarios such as new energy wiring harnesses, motors, transformers, electric heating equipment, ships, automobiles, home appliances, and high-temperature pipeline protection.

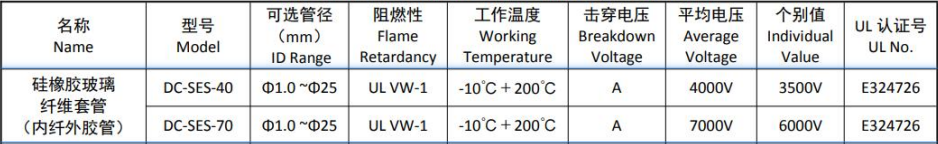

Basic performance parameters

Temperature resistance range: -40℃～200℃. For long-term continuous use, it can withstand up to 260℃ for short periods

Insulation level: H-grade insulation

Voltage withstand level: 1.5kV / 2.5kV / 4kV / 7kV (optional)

Flame retardant grade: UL94 VW-1 vertical self-extinguishing, burning time <30s

Environmental standards: RoHS and REACH compliant

Material structure: E-glass fiber braiding + elastic silicone rubber coating (vulcanized)

Appearance color: standard white/red, customizable in black, blue, yellow, green, etc

Physical properties: high elasticity, soft and bendable, resistant to flexing, wear-resistant and tear-resistant; not brittle at low temperatures, not brittle or cracking at high temperatures, and no delamination

Electrical properties: volume resistivity ≥10¹⁴ Ω·cm, high dielectric strength, stable insulation, arc resistance, and corona resistance

Weather resistance: waterproof, moisture-proof, oil-resistant, acid and alkali-resistant, ozone-resistant, aging-resistant, chemical solvent-resistant, with a long lifespan

Scope of application

Suitable for wire harnesses in new energy vehicles, energy storage devices, motors, transformers, induction cookers, electric heating tubes, marine electrical appliances, industrial high-temperature equipment, instruments and meters, special lighting fixtures, etc., where high elasticity, high temperature resistance, waterproof and moisture-proof, and aging resistance insulation and wire harness protection are required.
